Cable Tie Mounts & Clamps are available in plastics or metal material with screw or self adhesive mounting.
There are different sizes of cable tie mounts and clamps for a secure fixing with a wide variety of cable ties.
At present I am supplying the self adhesive tie mounts and cable clamps listed below should you require a different article, please let me know and I will provide details on the available product range, sizing, lead time and pricing.

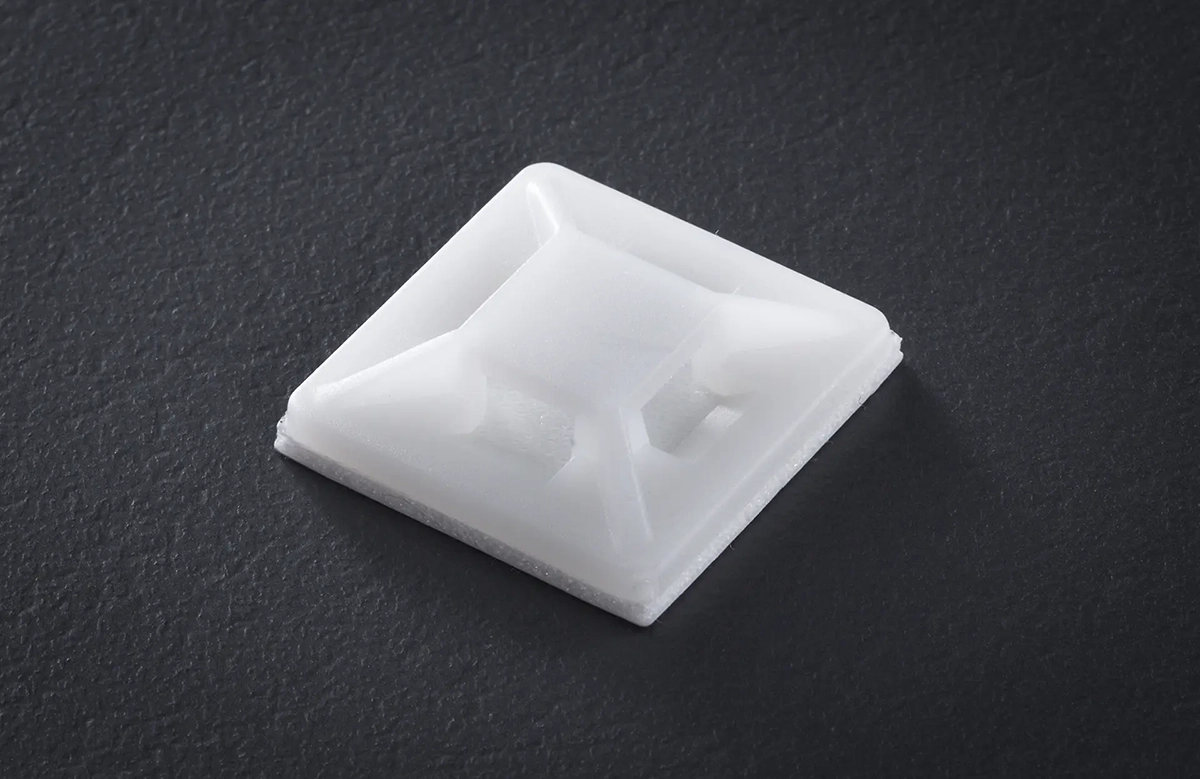

Tie Mounts (Self-Adhesive)
- Material: Nylon 6/6,With quality adhesive
- Flammability: UL 94V-2
- Color: Natural or Black
- 2 pieces a pair is also available
- Y.Y. Cable ties can be inserted from any of the 4 ways-saving orientation tie
- Test to comply with UL 62275
- Note: The SDM-101-YT is stocked locally, other articles will be supplied against customer PO
| Part Number | Length mm | Width mm | High mm | Diameter(Φ) | Used with Cable Ties | Packing (pcs/bag) |
|---|---|---|---|---|---|---|
| SDM-100 | 12.5 | 12.5 | 3.2 | - | M | 100 pcs/bag |
| SDM-101S | 19.5 | 19.5 | 3.9 | 3.2 | M.I.S | 100 pcs/bag |
| SDM-101M | 19 | 19 | 5 | 4.2 | M.I | 100 pcs/bag |
| SDM-101-YT | 19 | 19 | 4 | - | M.I.S | 100 pcs/bag |
| SDM-102 | 28 | 28 | 5.5 | 5.5 | M.I.S | 100 pcs/bag |
| SDM-103 | 38 | 38 | 7.5 | 5.2 | M~HD | 100 pcs/bag |
| SDM-101-2 | 19 | 19 | 4 | - | M.I.S | 50 pcs/bag |
| SDM-102-2 | 28 | 28 | 5.5 | 5.5 | M.I.S | 50 pcs/bag |
| SDM-102S | 26.5 | 26.5 | 7.4 | 4.3 | M.I.S | 100 pcs/bag |

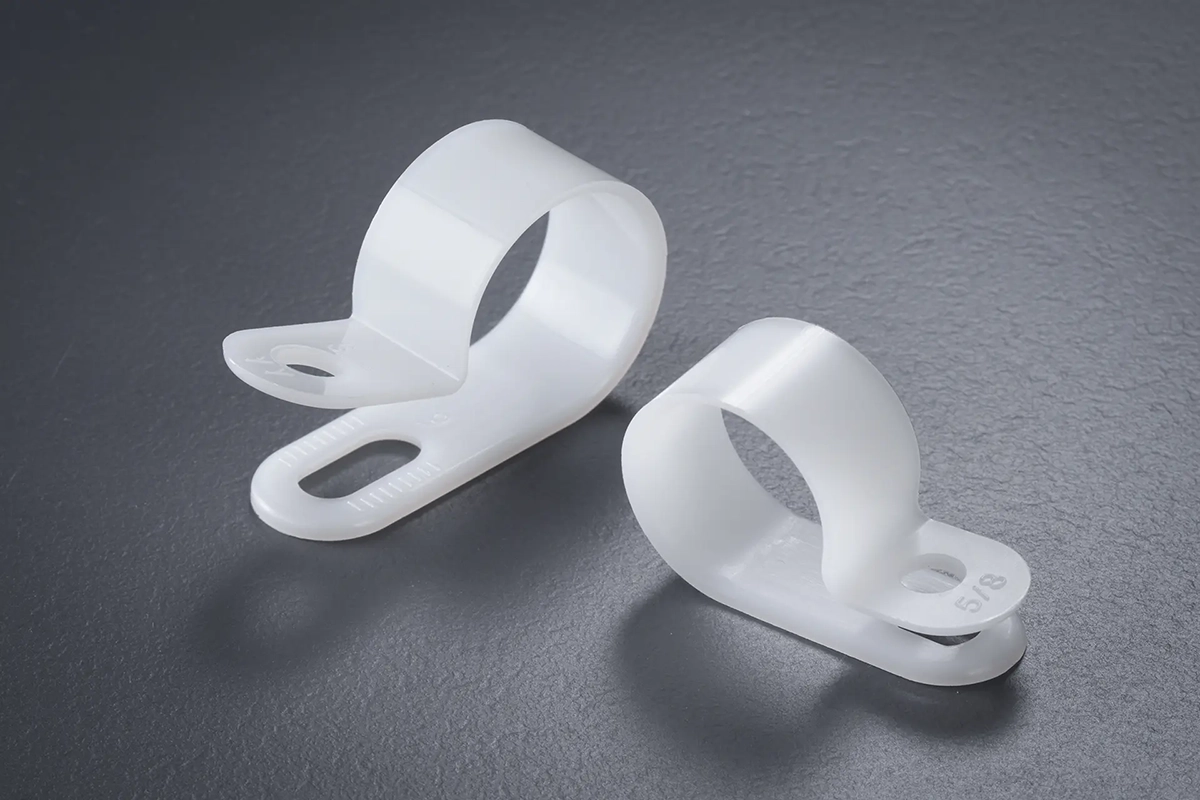

Cable Clamps
- Material: Nylon 6/6
- Flammability: UL 94V-2
- Color: Natural or Black
- Note: these articles will be supplied against customer PO
| Part Number | Dim. A | Dim. C | Dim. D | Packing (pcs/bag) |
|---|---|---|---|---|
| CC-01.0 (1/8") | 5.5 | 13.2 | 3.2 | 1000 pcs/bag |
| CC-01.0 (1/8") | 5.5 | 13.2 | 3.2 | 100 pcs/bag |
| CC-01.5 (3/16") | 5.5 | 9.8 | 4.5 | 1000 pcs/bag |
| CC-01.5 (3/16") | 5.5 | 9.8 | 4.5 | 100 pcs/bag |
| CC-2.0 (1/4") | 5 | 9.4 | 6.3 | 1000 pcs/bag |
| CC-2.0 (1/4") | 5 | 9.4 | 6.3 | 100 pcs/bag |
| CC-02.5 (5/16") | 5.5 | 9.3 | 7.6 | 1000 pcs/bag |
| CC-02.5 (5/16") | 5.5 | 9.3 | 7.6 | 100 pcs/bag |
| CC-03.0 (3/8") | 5 | 9.4 | 8.7 | 1000 pcs/bag |
| CC-03.0 (3/8") | 5 | 9.4 | 8.7 | 100 pcs/bag |
| CC-04.0 (1/2") | 5 | 12.4 | 12.2 | 1000 pcs/bag |
| CC-04.0 (1/2") | 5 | 12.4 | 12.2 | 100 pcs/bag |
| CC-05.0 (5/8") | 5 | 12.3 | 15.8 | 1000 pcs/bag |
| CC-05.0 (5/8") | 5 | 12.3 | 15.8 | 100 pcs/bag |
| CC-06.0 (3/4") | 5.3 | 12.7 | 17.7 | 100 pcs/bag |
| CC-08.0 (1") | 5.3 | 12.8 | 24 | 100 pcs/bag |
| CC-08.5 (1 1/16") | 4.6 | 12.7 | 27.5 | 100 pcs/bag |
| CC-10.0 (1 1/4") | 4.6 | 11.8 | 30 | 100 pcs/bag |
| CC-12.0 (1 1/2") | 4.8 | 12.6 | 36.7 | 100 pcs/bag |
